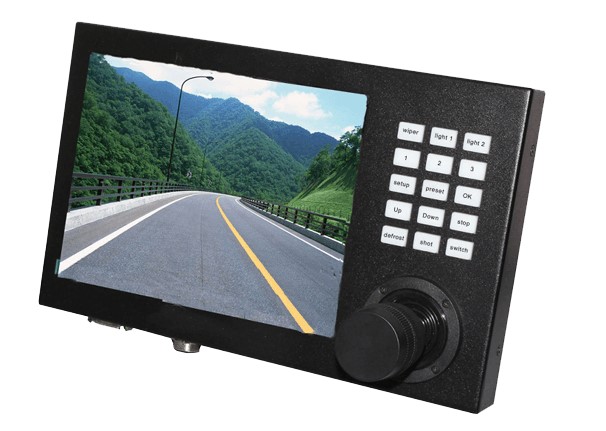

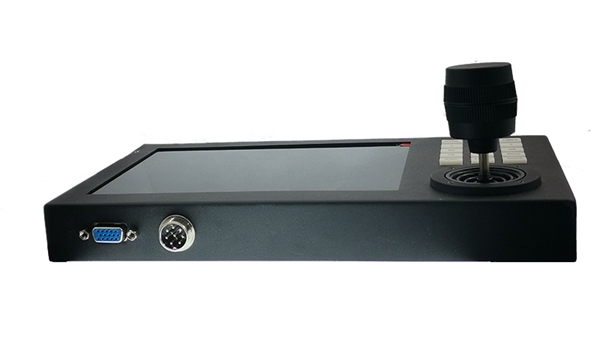

8 inch LED screen Vehicle visual keyboard controller
Model: ES-M08
1.Integration of 8" monitor and 4-dimensional joystick makes it small volume, light weight and superior appearance, saving space with few cables and easy installation.
2. PTZ Camera or decoder address range: 0-16.
3.1 channel VGA HD input and 1channel BNC input.
4.It can control the functions of PTZ camera, mobile lifter and police led warning light bar at the same time. It can control PTZ functions of camera and up and down of mobile lifer.
5.It has shortcuts of Wiper、LED、Preset、Call、Up and Down、Defrost、Capture、Switch etc.
6. It could control 16 preset positions.
7.1 channel RS485 input, 1 channel RS485 output, guarantee NVR and keyboard moniter control PTZ camera at the same time.
8. Using industrial electronic component design
|
Parameters |
|
|
Model |
ES-M08 |
|
Product name |
Vehicle visual keyboard controller |
|
LCD panel |
8" 4：3 LED display panel |
|
Resolution |
1280*960 |
|
Effective display range |
154.08(H) X 86.58(V) |
|
Video input |
1 channel BNC vedio input, 1 Vpp 75, 1 channel VGA interface, NTSC/PAL adaptive system |
|
Baud rate |
1200Bps、2400Bps、4800Bps、9600Bps |
|
Communication interface |
1 channel RS-485 input and 1 channel RS-485 output |
|
Control way |
support keyboard control |
|
Number of Controllable PTZ |
16pcs |
|
Number of Controllable preset positions |
16pcs |
|
Controllable device type |
Vehicle PTZ camera、mobile lifter and police warning light bar |
|
Controllable PTZ shortcut keys |
Wiper、light、preset、setup、 |
|
Controllable mobile lifter shortcut keys |
Up and down |
|
Controllable police warning light bar shortcut keys |
warning light and alarm |
|
Joystick type |
4 dimensional joystick |
|
Material |
Aluminum alloy shell |
|
Power supply |
DC12V±10% |
|
Working temperature |
-35℃~+55℃ |
Delivery time:
sample order: 2-5 working days
10-100 kits: 7-10 working days
100-1000 kits: 15-20 working days
Warranty: 1 year
