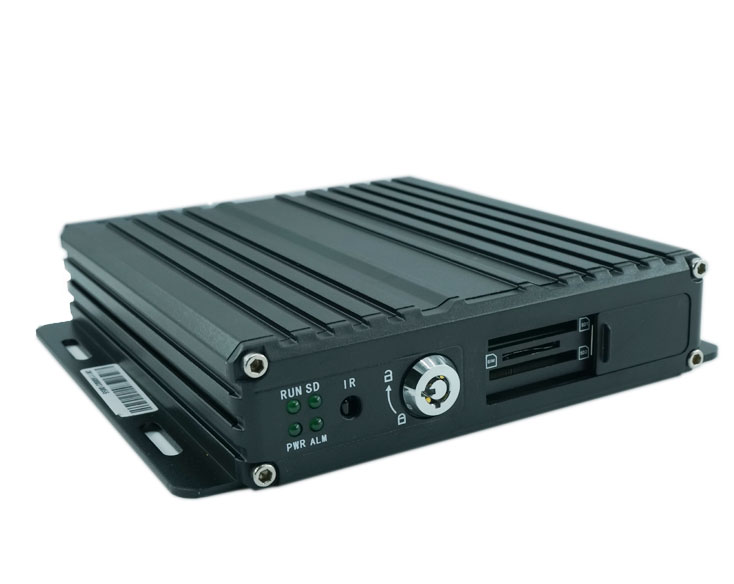

4 channel 1080P dual SD card Mobile DVR with GPS 3G 4G WIFI

Model: E604



Features:


Ÿ Built-in high performance Hisilicon chipsets, coded with H.264/H.265 standard, high compression rate and image quality.

It can save half of the storage, compared to H.264 compression.


Ÿ AHD/TVI/CVI/IPC/ANALOG five in one video input, wide compliance

Ÿ 4+1 live preview and storage

Ÿ 1CH synchronized AV output, 1CH VGA output

Ÿ Support UPS power input

Ÿ Built-in G-sensor, monitor the driving habits

Ÿ Reverse Assistance

Ÿ Adjust the Camera image horizontally and vertically

Ÿ Adjust the camera image 90 degrees

Ÿ Support GPS/4G/3G/WIFI/RJ45/G-SENSOR

Ÿ Support ultrasonic fuel level sensor


Power:

Ÿ Professional In-Vehicle power design, 8-36V DC Wide Voltage Range

Ÿ Multiple protection circuits like under-voltage, short, reversed plug-in

Ÿ Smart power management system, shutdown under low voltage, low consumption when standby

Ÿ Report the GPS info to the server regularly with very low power consumption, compliant with JT/T794-2011 standard

Data Storage:

Ÿ Built-in super capacitor to avoid data loss and disk damage caused by sudden outage

Ÿ Special file management system to encrypt and protect the data

Ÿ Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk

Ÿ Support dual SD card storage, maximum 2 x 256GB

Transmission Interface:

Ÿ Support GPS/BD/GLONASS optional, high sensitivity, fast positioning

Ÿ Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

Ÿ Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA




1080P Mobile DVR video Playback image quality

How to playback records:
1. Take out HDD/SD card, connect to PC, then playback or backup records with our MDVRplayer.
2. Backup records to U-Disk from USB port. Then playback or backup on PC.
3. Download records from CMSV6 platform directly.




Mobile DVR CMS Platform online monitoring

Mobile DVR work with professional fleet managment platform CMSV6, support PC Client software, Webpage client, mobile Android and IOS APP. It is very convenient to manage fleets, remote view live video and track position of all vehicles. Center people also can call driver and communicate with drivers by PTT speaker.



Installation

Mobile DVR and cameras are suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...



Video/audio input
4 channel
Voltage
DC 12V-36V
Video output
1ch Aviation+1ch VGA
Compression
H.264
Resolution
4ch 1080P/720P/960H
Certification
CE, RoHS,FCC
Storage
Max Support 2*256GB SD card
Warranty
1 year
Power input
+12V/24V, 2A
Work temperature
-40 -- 85°C
GPS
Optional
3G/4G
Optional
WiFi
Optional
G-sensor
Optional
IPC/RJ45
Optional
Size
142mm*152mm*32mm

Item

Device parameter

Performance

System

Main processor

Hi3520DV200

Operating system

Embedded Linux OS

Operating language

Chinese/English

Operating interface

GUI, Support mouse

Password security

User password/Admin password

Audio

&

Video

Video standard

PAL/NTSC

Video compression

H.265/H.265+/H.264

Image resolution

1080P/720P /960H/D1/CIF

Playback quality

1080P/720P /960H/D1/CIF

Compound mode

4ch 1080P/720P/4ch 960H/2ch 720P+2ch 960H

Decoding ability

1080P/ real time

Recording quality

Class 1-6 optional

Image display

Single/QUAD display optional

Audio Compression

G.726

Audio recording

Audio & Video synchronized recording

Recording & Playback

Recording mode

Manual/Alarm

Video bit rate

Full frame 4096Mbps6 classes image quality optional

Audio bit rate

8KB/s

Storage media

SD card storage

Video inquiry

Inquiry by channel/Recording type

Local playback

Playback by file

Firmware upgrading

Upgrading mode

Manual/Automatical/Remote

Upgrading method

USB disk/Wireless network

Interface

AV input

4ch aviation interface

AV output

1ch VGA video output, 1ch aviation AV output

Alarm input

4 digital inputs (2 Positive trigger, 2 negative trigger)

SD card

1 SDXC High speed card (up to 256G)

USB interface

1 USB 2.0 (support U disk/mouse)

Ignition input

1 ACC signal

UART

1 LVTTL Level

LED Indication

PWR/RUN/SD/ALM

SD card lock

1

Debug port

1

Function extention

GPS

Support detecting antenna Plug in/Unplug/Short circuit

WIFI

802.11b/g/n, 2.4GHz

3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

Others

Power input

9~32V DC

Power output

5V 300mA

Power consumption

Standby 3mA

Maximum consumption 18W  @12V 1.5A @24V 0.75A

Working temperature

-20 --- 70

Storage

1080P  2G/h/channel

720P   1G/h/channel

960H  750M/h/channel


Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days


What is Warranty time and repairing service?



A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
