Body Worn Camera

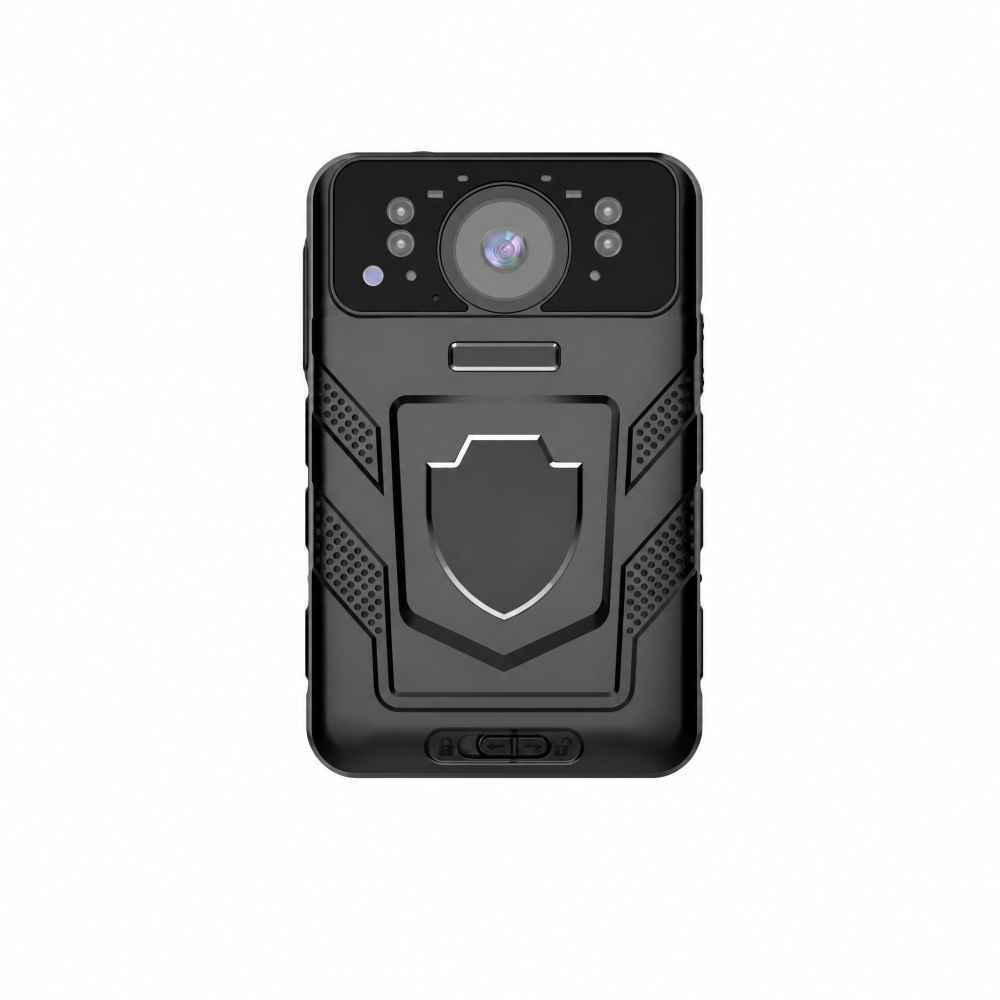

High Quality 2K HD Police Body Worn Camera with GPS WiFi 4G CMS Online Monitoring-Model: ES-C9A1

1440P HD(2560 x1440)
170 degree wide angle
3400MAH Battery
Waterproof IP66
Product description: Advanced 2K HD Police Body Worn Camera with GPS, WiFi, and 4G connectivity. Supports CMSV6 real-time monitoring and high-definition recording.
INQUIRY

High Quality 2K HD Portable Body Worn Camera with GPS WiFi 4G CMS Online Monitoring

Main features:

2K full high-definition camera;

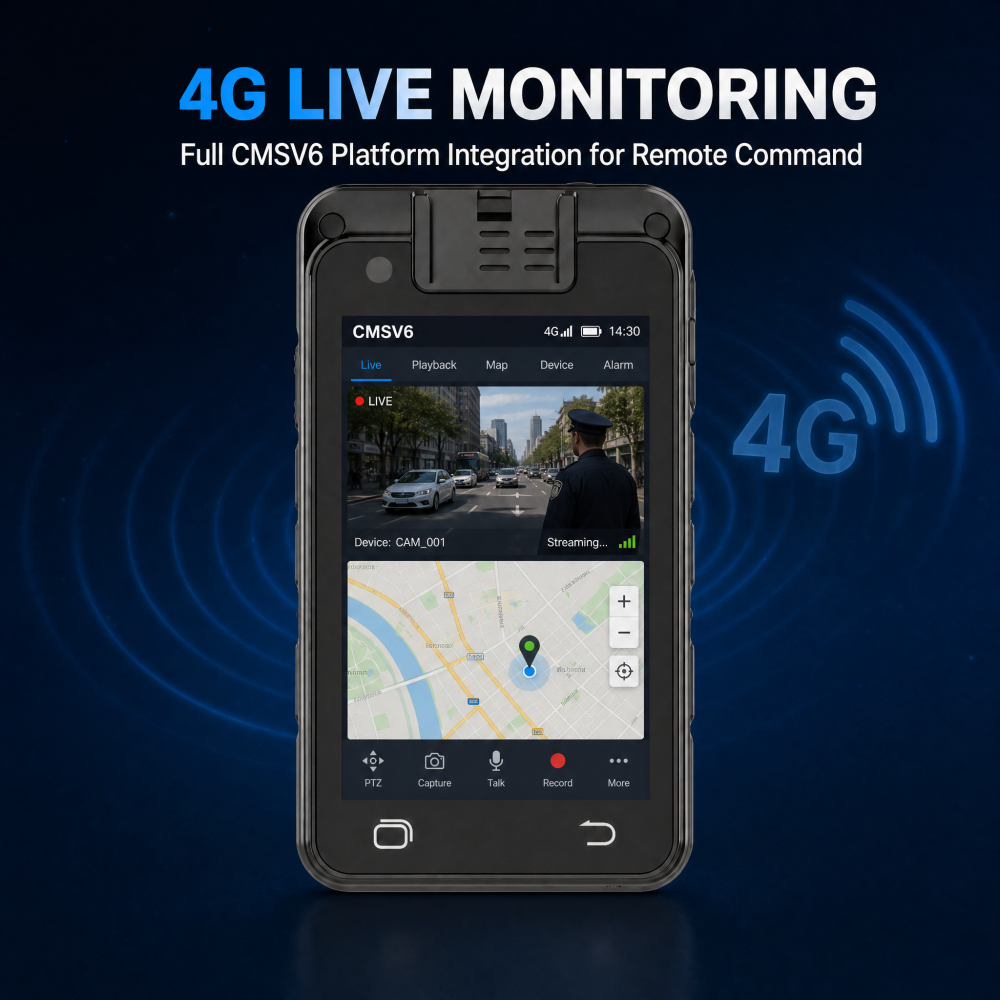

GPS WiFi 4G CMS Online Monitoring

Take photos up to 48 million pixels;

Support Micro SD card up to 256G;

140 degree wide angle lens: no longer missing the details of the scene;

Double-filter switch: no color deviation in the daytime, and clearer at night;

Super night vision function: up to 10 Meters with visible face image;

Flashing warning light: the warning is more obvious and direct;

l Watermark: all videos and photos are attached with time, ID no., user no. and other information, which cannot be edited, and have more legal evidence;

Powerful waterproof function;

It has three functions: take video, audio and photo;

Split video: prevent data loss caused by misoperation;

2-inch high-definition IPS display: wider view angle and more detailed playback;

Industrial grade plastic and structural design: rugged, durable and fall-proof.

Basic configuration

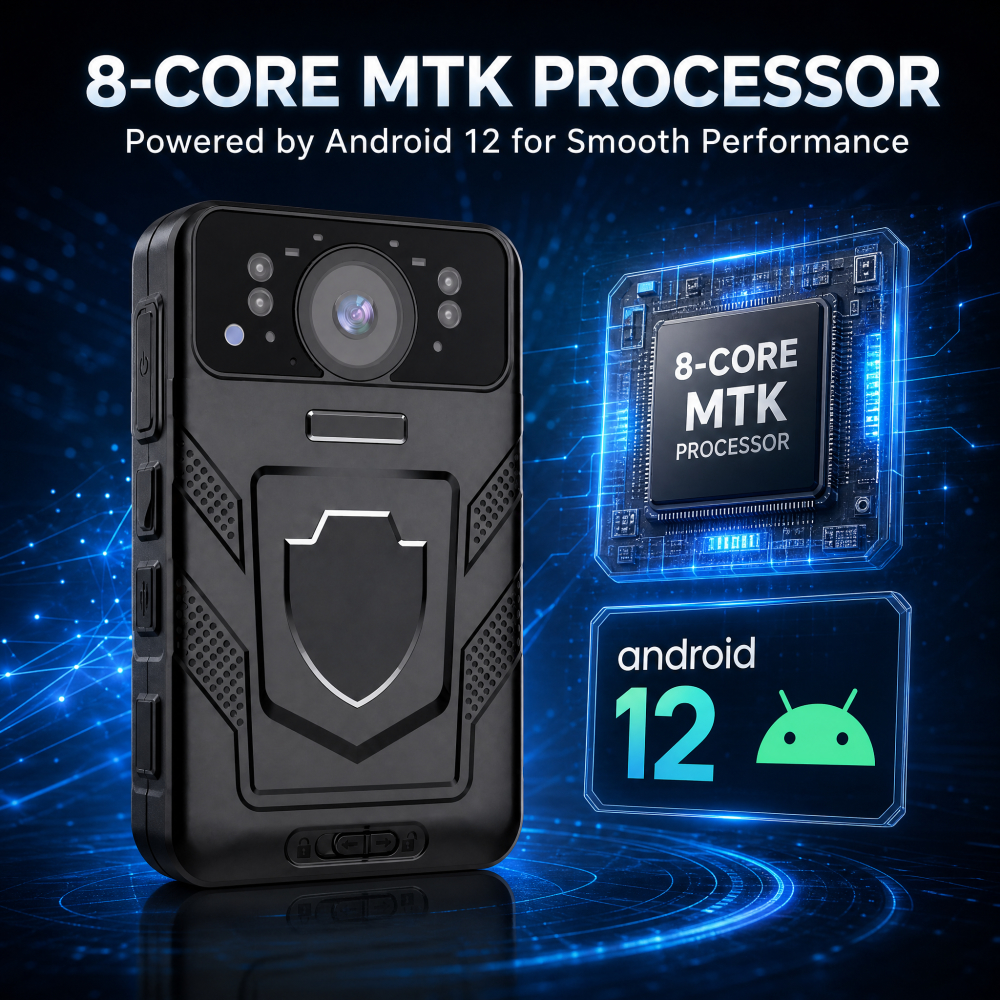

Main chip	MTK MT6769 12nm 8-core processor 2.0G high speed low power processor
Operating system	Android™12 Intelligent operating system

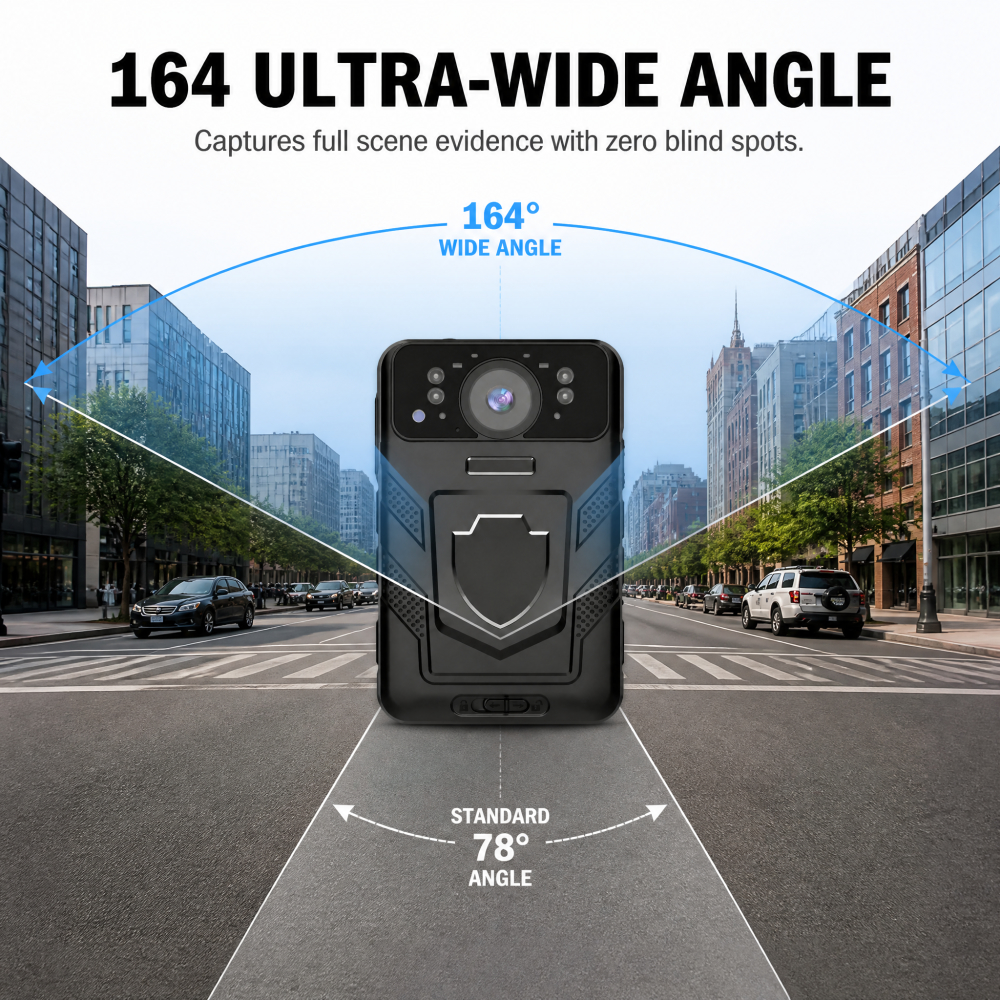

Lens module	Front FF camera: OV4689 FOV:164 degree， F-25 Front camera: Sony 13M
Memory	64GB Standard

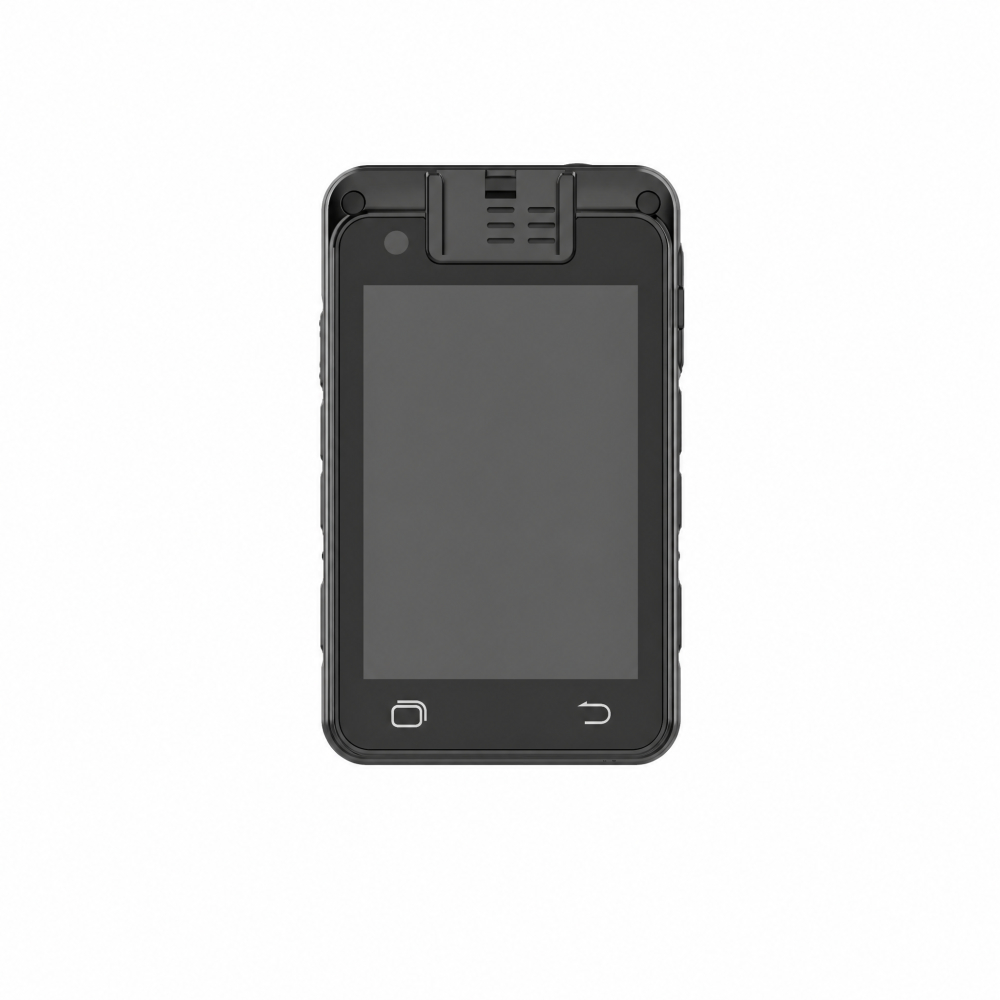

Display / touch screen	2.8 inch IPS screen480 (RGB) * 640， Narrow border + ON CELL multi-touch screen
Horn	2613,2W Waterproof speaker
Microphone	DualMicphone，With active noise reduction
Auxiliary light source	4 infrared lights, 2 white light, 1 laser light
Light sensor	Standard configuration for controlling automatic on and off of infrared light
Motion sensor	Acceleration sensor (standard), gyroscope support 6 axis.
Storage card	Built-in TF card, up to 256GB
Wifi	Support 802.11b/gprotocol，2.4GHz+5GHz
Bluetooth/NFC	NO
Positioning	Built-in GLONASS/GPS Combined positioning+AGPS，Support BEIDOU/Galileo
Interface	TYPE-C USB2.0
Function parameter

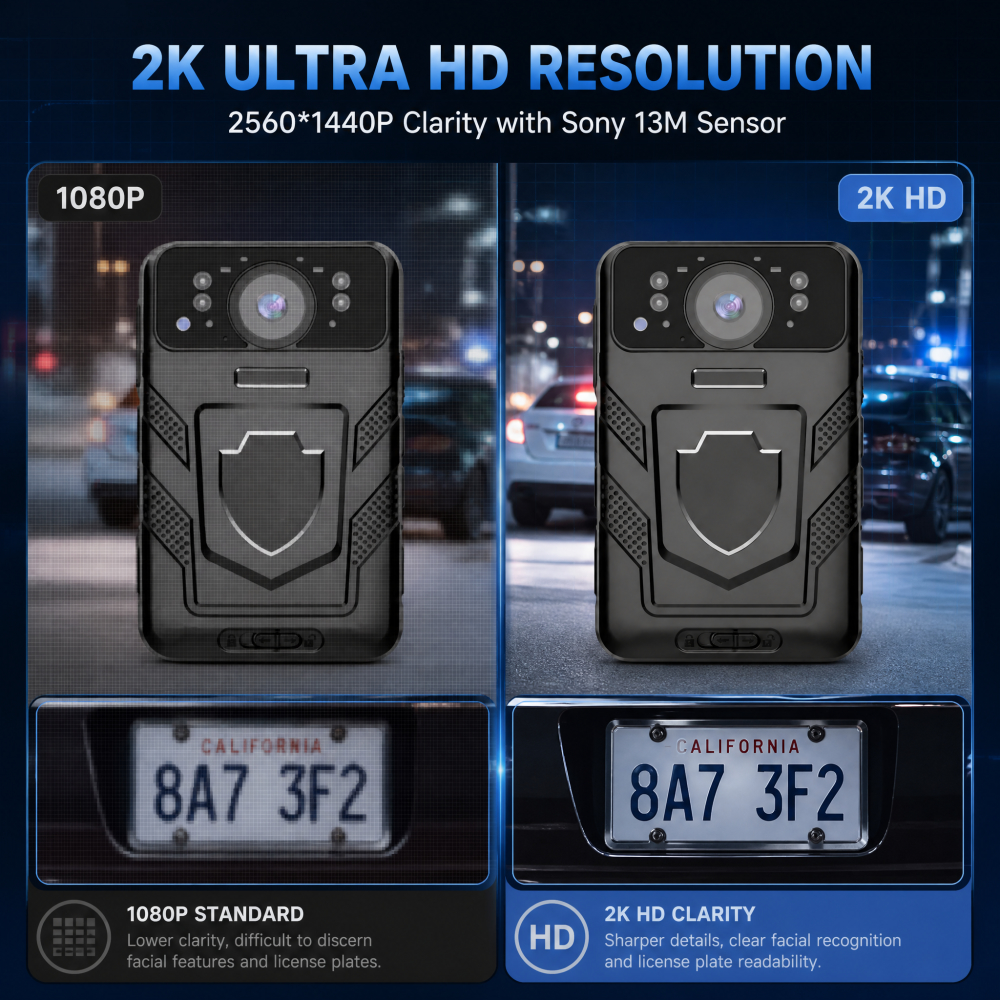

Video resolution	Max 2K (2560 * 1440) 30FPS
Photo size	4M，8M，16M，32M，48M

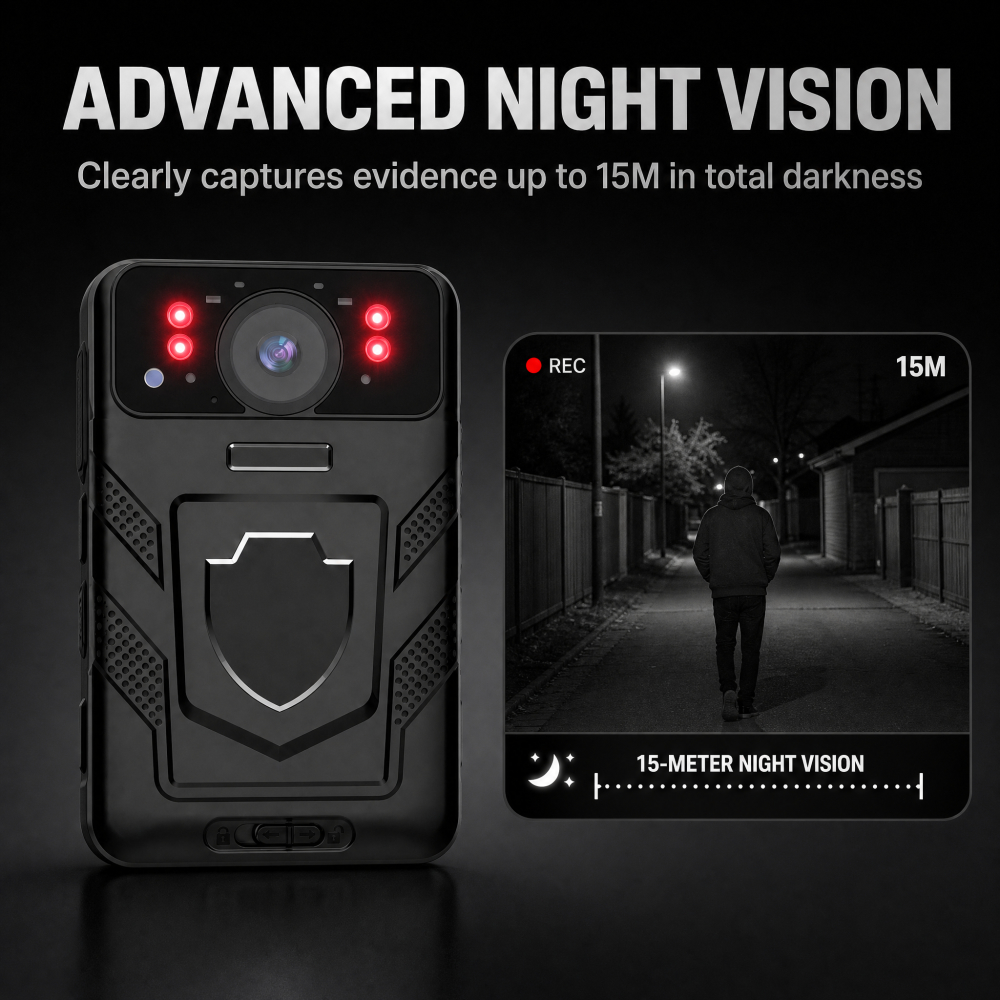

Infrared night vision	Infrared light can cover 70% of the effective area within a viewing angle of 3 meters, and the viewing distance is 15 meters
Video function	Support 10-second pre-recording, support video capture
Camera function	Support continuous shooting, automatic white balance, 4x digital zoom
Distortion correction	20%(Optional lens)
Native playback	Support local playback, can adjust the progress bar to play through touch screen
Focus mark	Marks documents recorded by the equipment
Overlavinformation	Equipment serial number + device information, year, month, day, hour, minute, secondlocation information

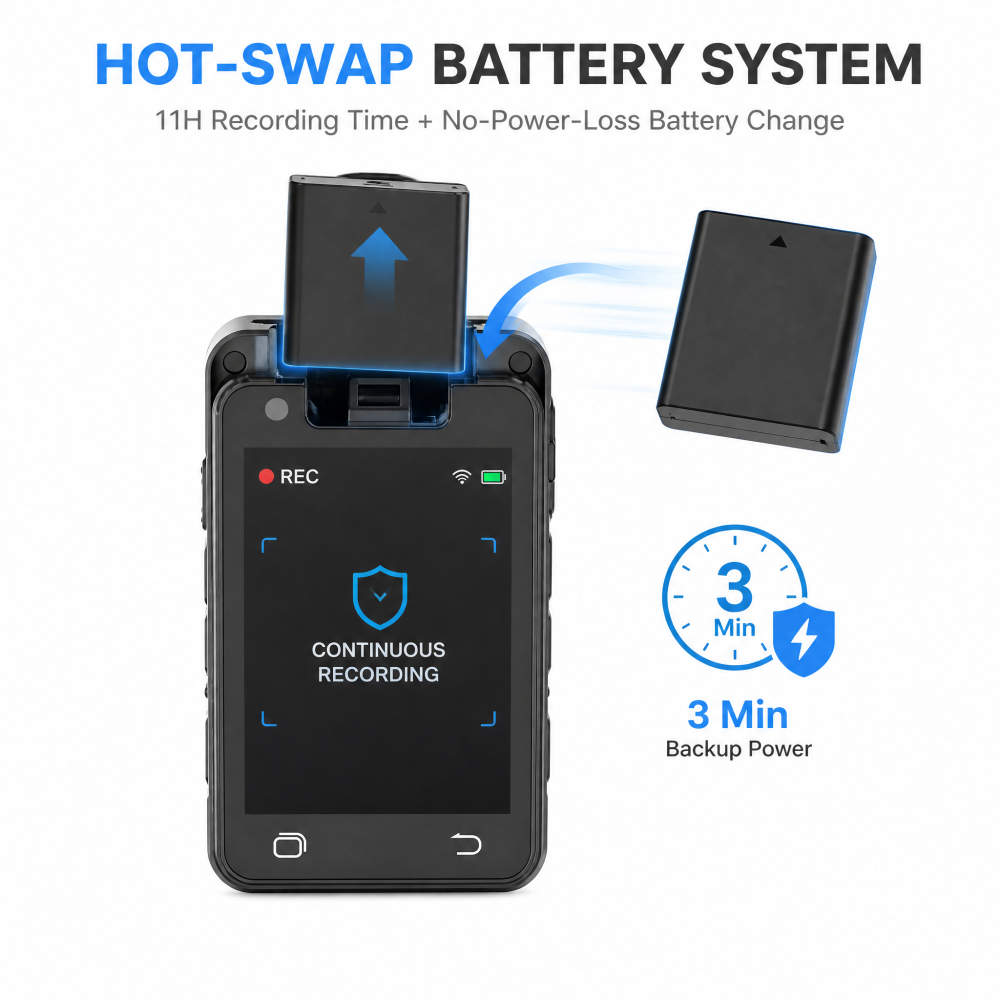

Battery	Replaceable and rechargeable high-voltage battery.
Charging method	Adapter PC-USB auxiliary charging / car USB with fast charging function,5V / 2A charging
Built in battery	Built-in 75mAh small battery, 3 minutes of continuous power when replacing the battery
Shooting time	Single battery flight mode recording has a range of 11 hours, and single battery image transmission is greater than 7 hours
Energysaving mode	Automatically turn off the screen and enter power saving mode within 5 minutes
Structure appearance
Appearance craft	Two-color mold process, soft rubber keys, with limit button
Appearance specifications	Size: 93mm26mm70mm, Weight: 165g

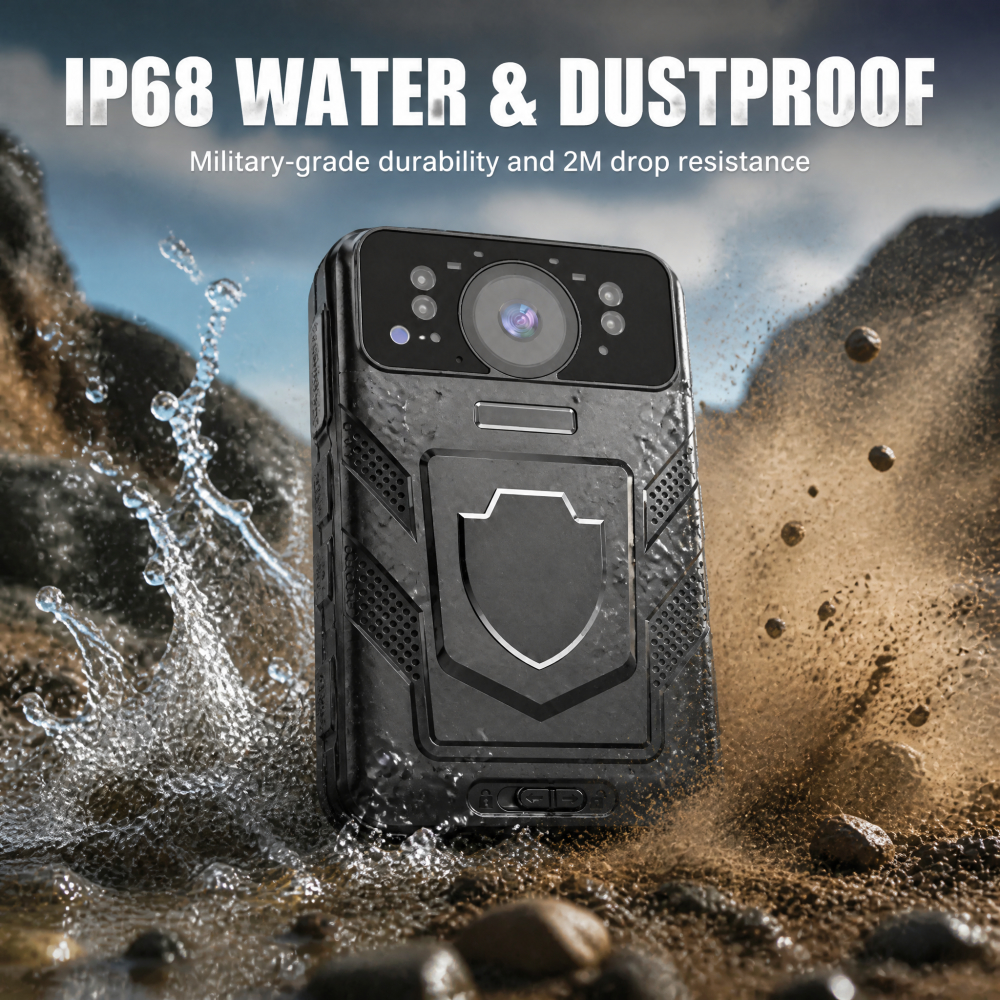

Protection class	IP68, Cumulative drop 30 times on any 6 sides within 2 meters without damage
working environment	Temperature: -30~ 70°C， Relative humidity: 40% ~ 80%
Storage environment	Temperature: -40~70°C， Relative humidity: 93% (40°C)
