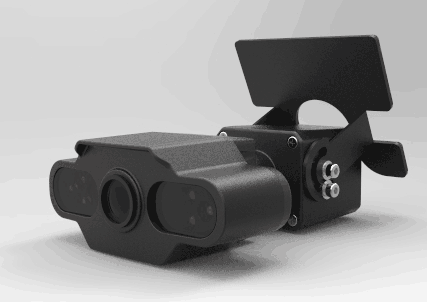

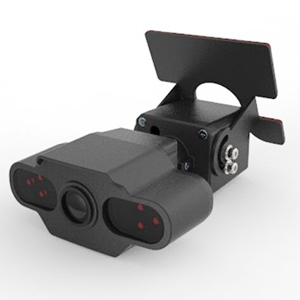

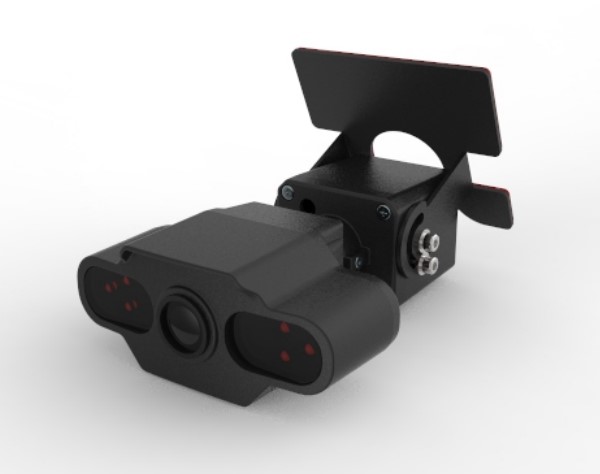

  • 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car
  • 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car
  • 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car
1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car

1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car

  • 1.3mp AHD

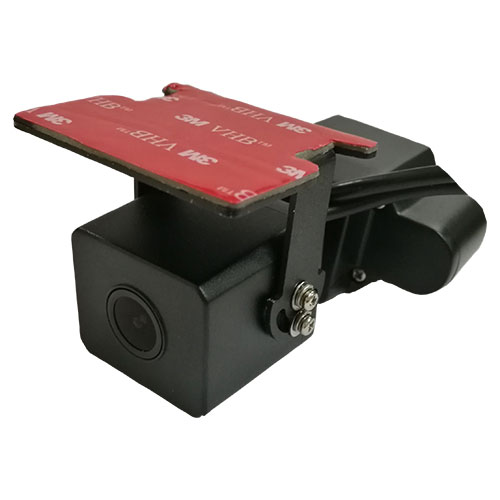

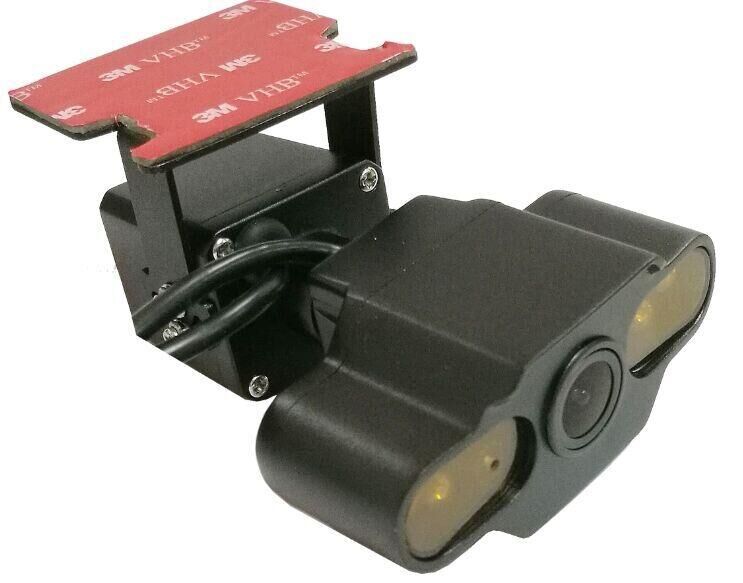

  • Can be mounted on windshield
  • dual camera
  • with IR night vision
  • Product description: 1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car
  • INQUIRY

1.3MP AHD dual Camera with IR night vision for bus/truck/taxi/car


  Camera 1

Model

EC033-1

Image Sensor

1/3” CMOS AR0130

TV System

PAL/NTSC (optional)

Picture Elements

1280 (H) x 960 (V)

Sensitivity

0 Lux (IR LED On)

Scanning System

Progressive scan RGB CMOS

Synchronization

Internal

S/N Ratio

More than 44dB (AGC Off)

Auto Gain Control (AGC)

Auto

Electronic Shutter

Auto

BLC

Auto

Infrared Spectrum

940nm

Infrared LED

6 LEDs

Video Output

1 Vp-p, 75Ω,AHD

Audio

Available

Mirror

Optional

ICR

N/A

Noise Redution

3D

Dymamic range

83.5 dB

Lens

f2.5mm Megapixel

Pan Adjusting

0-50°

Tilt Adjusting

0-50°

Power Supply

9-18V DC

Power Consumption

110mA

Weatherproof/Water Proof

N/A

Operating Temperature

-30°C to +70°C



Camera 2

Model

EC033-2

Image Sensor

1/3” CMOS AR0130

TV System

PAL/NTSC (optional)

Picture Elements

1280 (H) x 960 (V)

Sensitivity

0.1 Lux/F1.2

Scanning System

Progressive scan RGB CMOS

Synchronization

Internal

S/N Ratio

More than 44dB (AGC Off)

Auto Gain Control (AGC)

Auto

Electronic Shutter

Auto

BLC

Auto

Infrared Spectrum

N/A

Infrared LED

N/A

Video Output

1 Vp-p, 75Ω,AHD

Audio

N/A

Mirror

Optional

ICR

N/A

Noise Redution

3D

Dymamic range

83.5 dB

Lens

f2.5mm Megapixel

Pan Adjusting

N/A

Tilt Adjusting

0-80°

Power Supply

9-18V DC

Power Consumption

70mA

Weatherproof/Water Proof

N/A

Operating Temperature

-30°C to +70°C

Please don't hesitate to send us inquiry.
Contact: Nick Huang
Email: nick@eastyletech.com
Skype: nicky_hdj
Whatsapp: +8613265680731
Mobile: +8618998078488
