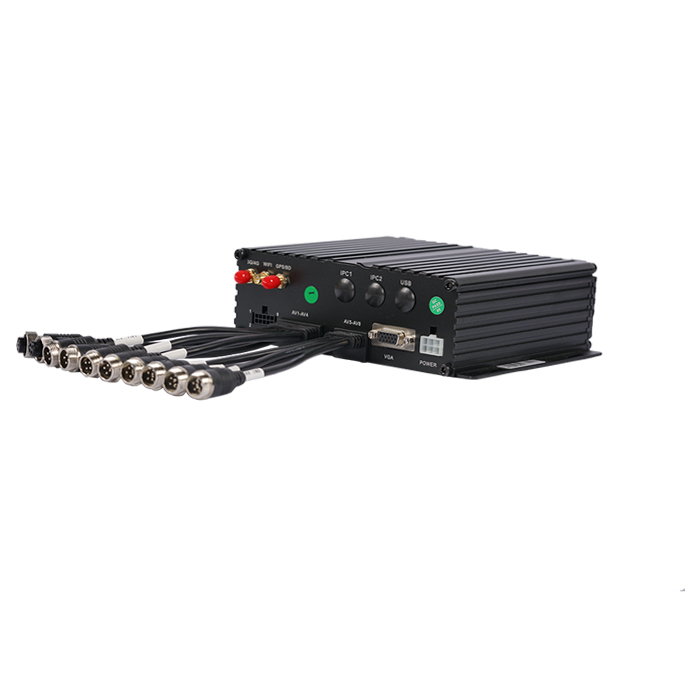

8 channel 1080P Mobile DVR with GPS 3G 4G WIFI G-sensor RJ45 IPC


Model:E808


Features


Ÿ Built-in high performance Hisilicon chipsets, coded with H.265 standard, high compression rate and image quality, it can save half of the storage, compared to H.264 compression.

Ÿ 8 CH 1080P Full HD.

Ÿ Support 2CH 1080P IPC

Ÿ 1CH synchronized AV output, 1CH VGA output

Ÿ Support UPS power access

Ÿ Built- in G-sensor, real-time monitoring of vehicle driving behavior

Ÿ Easy to install, supports the horizontal, the vertical Mirror image.The Camera can realize 90°,180°,270° rotations.

Ÿ Support 4CH 360 Splice

Ÿ Independent Voice Intercom

Ÿ Automatic hard disk heating

Ÿ Support GPS/4G/3G/WIFI/RJ45/G-SENSOR

Ÿ Support ultrasonic fuel level sensor



Installation

Mobile DVR and cameras are suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...


1080P Mobile DVR video Playback image quality


How to playback records:
1. Take out HDD/SD card, connect to PC, then playback or backup records with our MDVRplayer.
2. Backup records to U-Disk from USB port. Then playback or backup on PC.
3. Download records from CMSV6 platform directly.



Mobile DVR CMS Platform online monitoring


Mobile DVR work with professional fleet managment platform CMSV6, support PC Client software, Webpage client, mobile Android and IOS APP. It is very convenient to manage fleets, remote view live video and track position of all vehicles. Center people also can call driver and communicate with drivers by PTT speaker.

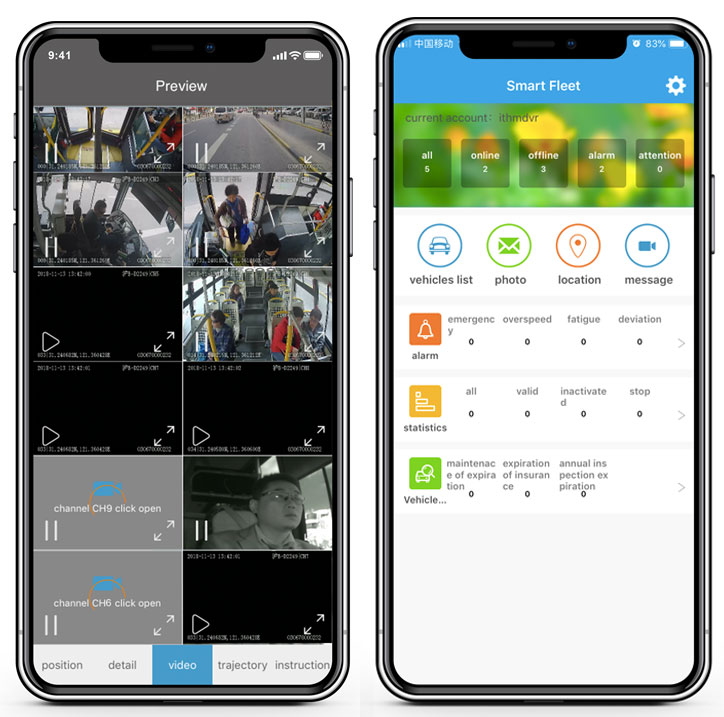

Mobile APP monitoring:



Technical parameter:

Item

Device parameter

Performance

System

Main processor

Hi3521D

Operating system

Embedded Linux OS

Operating language

Chinese/English

Operating interface

GUI, support mouse

Password security

User password/Admin password

Audio

&

Video

Video standard

PAL/NTSC

Video compression

H.265/H.264

Image resolution

1080P/720P/960H/D1/CIF

Playback quality

1080P/720P/960H/D1/CIF

Compound mode

A variety of ways

Decoding ability

1ch 1080P real time

Recording quality

Class 1-6 optional

Image display

Single/QUAD display optional

Audio Compression

G711G.726

Audio recording

Audio & Video synchronized recording

Recording & Playback

Recording mode

Manual/Alarm

Video bit rate

Full frame 4096Mbps6 classes image quality optional

Audio bit rate

8KB/s

Storage media

SD card + HDD/SSD storage

Video inquiry

Inquiry by channel/Recording type

Local playback

Playback by file

Firmware upgrading

Upgrading mode

Manual/Automatical/Remote/Emergency Recovery

Upgrading method

USB disk/Wireless network/SD card

Interface

AV input

8ch aviation interface

AV output

1ch VGA video output, 1ch aviation AV output

Alarm input

4 digital inputs (4 Positive/Negative trigger)

HDD/SSD

1 HDD/SSD (up to 2TB, support hot plug/unplug)

SD card

1 SDXC High speed card (up to 256GB)

USB interface

1 USB 2.0 (support U disk/mouse)

Ignition input

1 ACC signal

UART

1 LVTTL Level

LED Indication

PWR/RUN

Disk lock

1

Debug port

1

Function extention

GPS/BD

Support detecting antenna Plug in/Unplug/Short circuit

3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

WIFI

802.11b/g/n, 2.4GHz

Others

Power input

8~36V DC

Power output

5V 500mA

Power consumption

Standby 3mA

Maximum consumption 30W  @12V 2.5A @24V 1.25A

Working temperature

-20 --- 70℃

Storage

1080P 1.2G/h/channel

720P   1G/h/channel

960H   750M/h/channel

Dimension

162mm*153mm*52mm


Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days


What is Warranty time and repairing service?

A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
