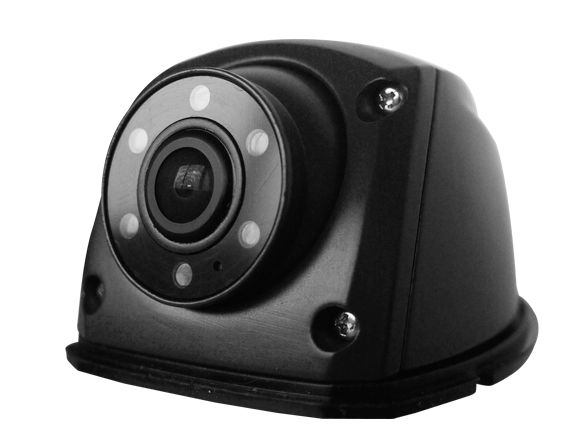

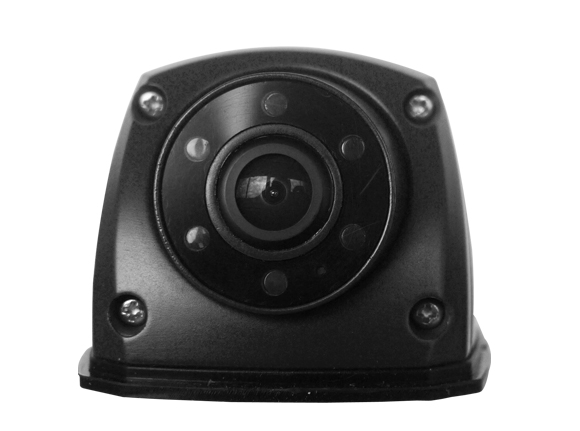

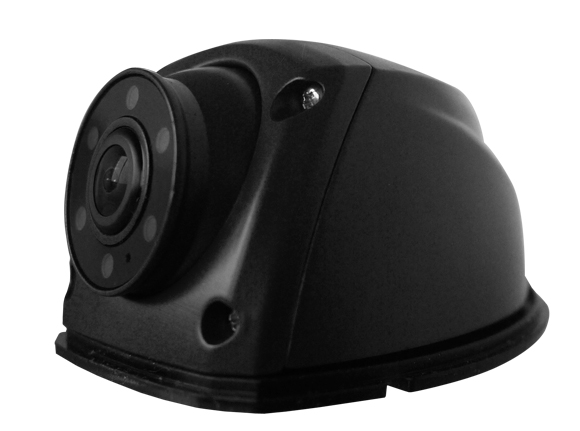

1080P/960P 170 degree wide view AHD Vehicle Camera Waterproof IP68/IP69K
Model: EC772-AHD
Product overview：
★ Support AHD coaxial HD output, clear image , 1080P/960P
★ No delay, no compression, low consumption, real-time transimission
★ Common use in vehicle HD large monitor,super HD image display.
★ Lens imported with original packaging, super wide angle 170° /150°, no adjustment, no blind spot.
★ IP 68 waterproof grade, high reliability.
Technical parameters
Model
EC772-AHD
Image sensor
1/3" progressive scan CMOS AR0130 (Star Light Sony225 with HD night vision function optional )
Horizontal resolution
2.0 or 1.3Mega pixel
TV system
PAL/NTSC
Effective pixel
1960*1080/1280(H)*960(V)
Low illumination
0.01Lux@(F1.2,AGC ON),0 Lux with IR
S/N Ratio
≥69 dB(AGC OFF)
Auto Gain Control
support
Back Light Comp
support
White Banlance
auto
Digital Noise Reduction
2D/3D-DNR
Electronic Shutter
AUTO/1/50（1/60）-1（100，000Sec）
Video output
AHD VIDEO(960P)

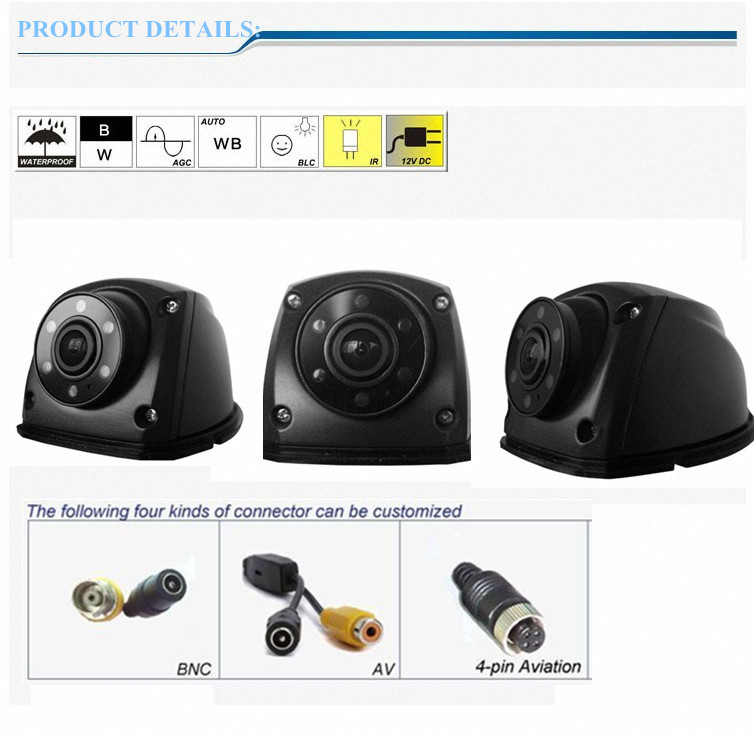

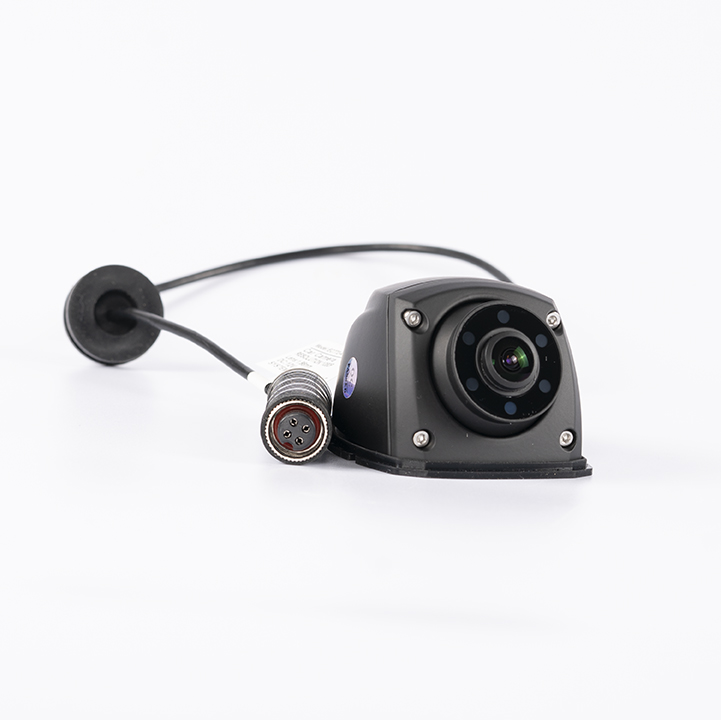

Output connector
4Pin aviation head cable (Default)
Lens/Angle of view
2.33mm/H=120°,1.78mm/H=150°,1.5mm/H=170°，M12*P0.5
IR Leds Quantity
5 PCS
Waterproof grade
IP68
Operating Temperature
-20°C~+70°C
Power supply
DC12V±10%
Power consumption
≤2W
Dimension
54.2*73.7*41
Delivery time:
sample order: 2-5 working days
10-100 kits: 7-10 working days
100-1000 kits: 15-20 working days
Warranty: 1 year
