  • 2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD
  • 2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD
  • 2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD
  • 2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD
2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD

2.0MP/1.3MP 1080P Full HD dual Camera -Model: EC033-AHD

  • 1080P FULL HD
  • Can be mounted on windshield
  • dual camera
  • with IR night vision
  • Product description: 2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision for bus/truck/taxi/car
  • INQUIRY

2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision for bus/truck/taxi/car


Model: EC033-AHD

Fetures:

2.0  MegaPixels (1080P) or 1.3  MegaPixels (720P)

2.35mm lens(120 degree view angle)

Can be mounted on Windshield

Suitable for Taxi/Car/Truck/bus

Composed by front and rear cameras

rear camera with IR and audio

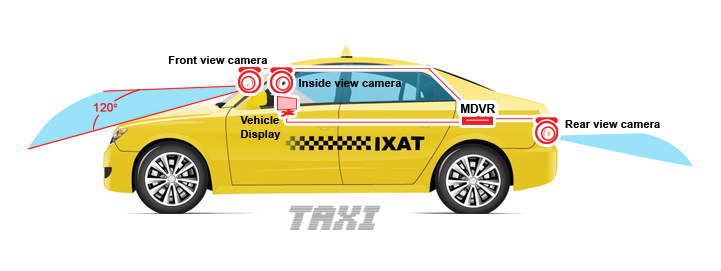

Installation

This dual cameras are suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...

It can be mounted on windshield with sticker, very easy to install.

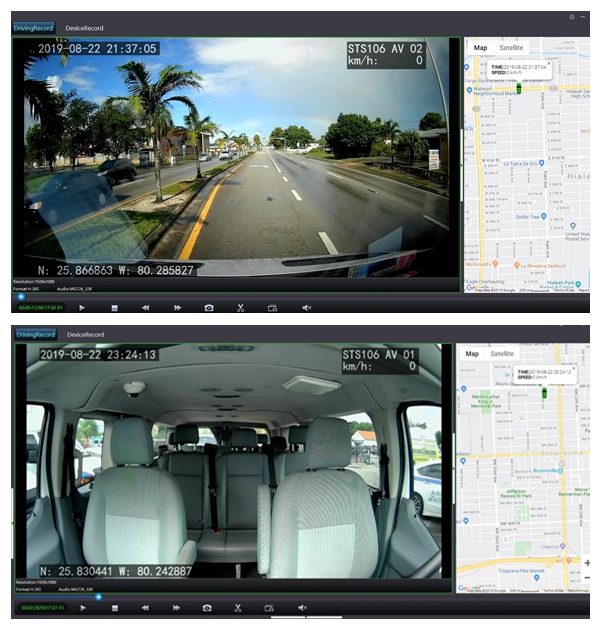

1080P Mobile DVR video Playback image quality



Camera 1


Model EC033-F
Image Sensor 1/3” CMOS AR0130
TV System PAL/NTSC (optional)
Picture Elements 1280 (H) x 960 (V)
Sensitivity 0 Lux (IR LED On)
Scanning System Progressive scan RGB CMOS
Synchronization Internal
S/N Ratio More than 44dB (AGC Off)
Auto Gain Control (AGC) Auto
Electronic Shutter Auto
BLC Auto
Infrared Spectrum 940nm
Infrared LED 6 LEDs
Video Output 1 Vp-p, 75Ω,AHD
Audio Available
Mirror Optional
ICR N/A
Noise Redution 3D
Dymamic range 83.5 dB
Lens f2.5mm Megapixel
Pan Adjusting 0-50°
Tilt Adjusting 0-50°
Power Supply 9-18V DC
Power Consumption 110mA
Weatherproof/Water Proof N/A
Operating Temperature -30°C to +70°C

Camera 2


Model EC033-R
Image Sensor 1/3” CMOS AR0130
TV System PAL/NTSC (optional)
Picture Elements 1280 (H) x 960 (V)
Sensitivity 0.1 Lux/F1.2
Scanning System Progressive scan RGB CMOS
Synchronization Internal
S/N Ratio More than 44dB (AGC Off)
Auto Gain Control (AGC) Auto
Electronic Shutter Auto
BLC Auto
Infrared Spectrum N/A
Infrared LED N/A
Video Output 1 Vp-p, 75Ω,AHD
Audio N/A
Mirror Optional
ICR N/A
Noise Redution 3D
Dymamic range 83.5 dB
Lens f2.5mm Megapixel
Pan Adjusting N/A
Tilt Adjusting 0-80°
Power Supply 9-18V DC
Power Consumption 70mA
Weatherproof/Water Proof N/A
Operating Temperature -30°C to +70°C


Delivery time:

sample order: 3-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days


Warranty: 1 year


Please don't hesitate to send us inquiry.
Contact: Nick Huang
Email: [email protected]
Skype: nicky_hdj
Whatsapp/Wechat: +8613265680731
